Description

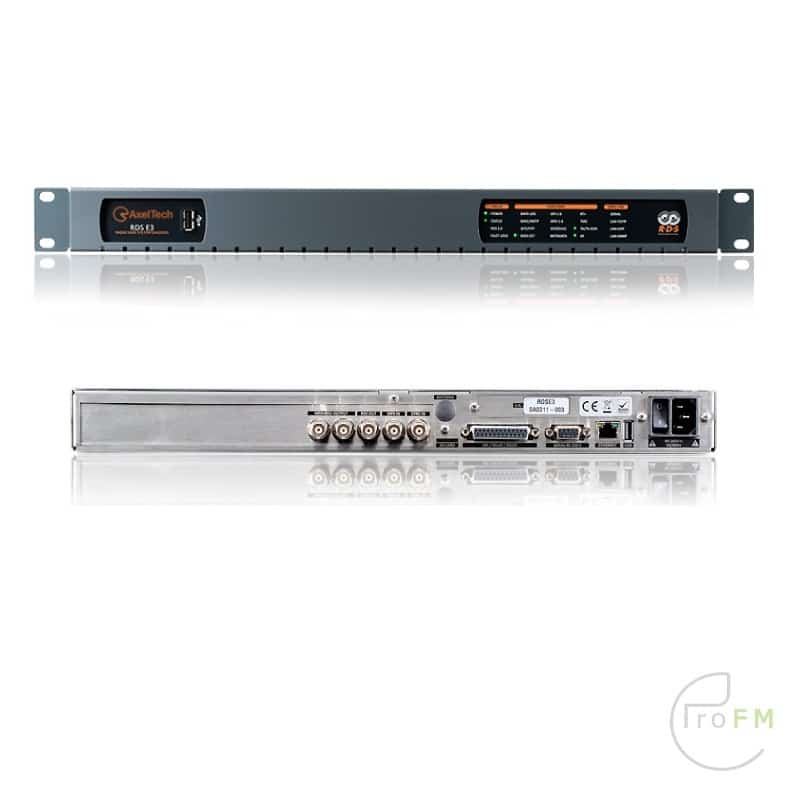

Axel Technology RDSE3 RDS Encoder
RDSE3 is a a dynamic RDS encoder which supports all services and features af advanced use. RDSE3 supports the most advanced RDS dynamic services, including TMC, ODA, IH, TDC, EWS, Radio Text and Radio Text plus. In addition to standard CENELEC NRSC methods, RDS programming has been enriched with larger PS and RT sets (also available in dynamic mode) with powerful scheduling capabilities.
GPS satellite receiver, such as our SAT TIME SYNCHRONIZER, can broadcast local time info as part of the RDS data. RDS service carries out also 4 IH(InHouse Application) remote controls, that can be used to start advertising breaks on distant networks, to split broadcasting areas, to activate/deactivate recorders. RDSE3 can be easily interfaced to various Automation Systems and offers an ASCII protocol for broadcast song/artist information. In case of alarms, it supports SNMP alerting for automation systems.
Main Features
– Compatible with UECP EBU SP490 version 7.05
– Compliant with European CENELEC and USA NRSC standards
– Possibility of connection with all automated Playout System to generate PS/RT/RT /TA/M-S
– Alternation between News/Data-Songs over RT/RT /PS/PTY/PTYN
Power Supply :90-260 Vac / 47-63 Hz
Power Consuption :10W
Pilot/MPX Input :Yes
Inputs number :2
Outputs number :3
MPX/RDS Output :0 to 8191 mVpp
Signal/Noise Ratio :>85 dB
Carrier Suppression :>85 dB
GPIO Inputs/Outputs :6 GPI / 4 GPO
Communication Port :2xRS232, 3xUSB, 1xLAN
Synchronization :Ext(Pilot Mpx)/ Int/Auto
Synchronization Monitoring :Yes
RDS level adjustment :Digitally controlled
Phase adjustment :Yes, 0 ÷ 359.9°
Separate outputs for RDS MPX and for RDS only :Yes
Side Chain Mode, Loop through mode, Bypass feature :Yes
RDS Subcarrier :100% Digitally Generated Shape
Pilot synchronization :Input Level: -50dBu to 15dBu / Frequency: 19kHz, ±2Hz
CENELEC – EN50067 compliant – Yes
Accurate Clock Time (CT) Sync with Internet Connection :Yes
Remote TA actuation for Traffic Announcements :Yes
Firmware can be upgraded in the field :Yes
Front panel leds :40
Operating temperature :0°C ÷ 50°C
Group supported :All Configurable
Group Sequence :8 DSN x 10 PSN
8 DSN x 10 PSN
