Description

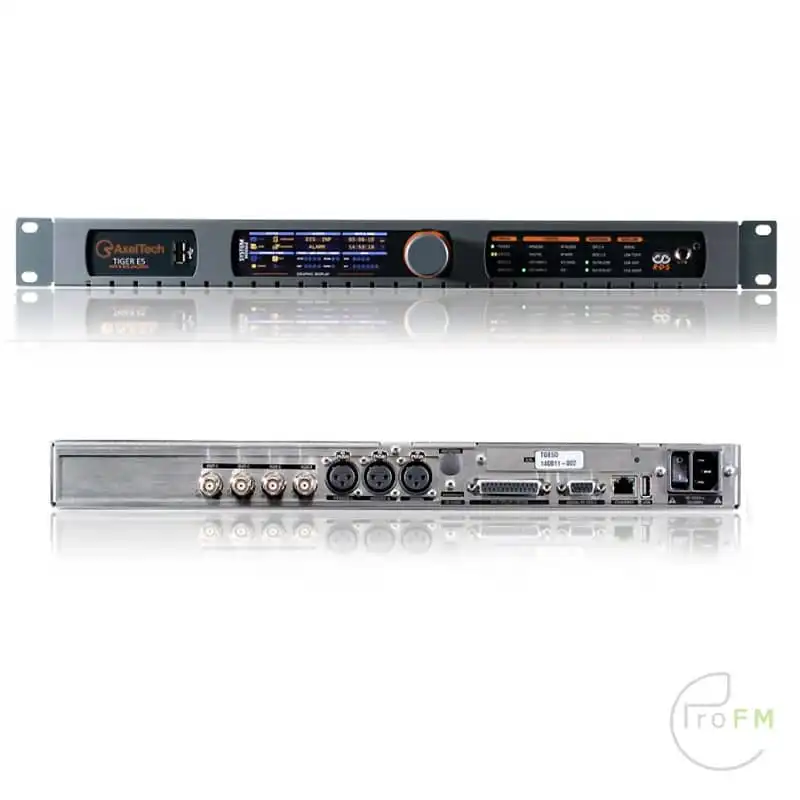

Axel Technology E5 Stereo – RDS encoder
TIGER E5 is the device that can manage each kind of FM Transmitter Site and fulfills every custom requirement, from large national FM networks to local stations.
TIGER E5 is a 7 devices in 1, thanks to the powerful of the digital technology Tiger E5 can fulfill the following functions: IP Audio Codec / Audio Changeover / Audio Limiter / Stereo Generator / RDS Encoder / MPX Changeover / FM Monitoring System with integrated Tuner.
TIGER E5 can manage and decode MPX and RDS signals, receive IP Audio streaming signals, be connected and analyze Analog and Digital audio signals; thanks to the audio 4 channels Audio changeover and MPX Changeover it can handle every kind of received signal in a transmitting site. Tiger E5 has a double IP streaming receiver and SD card player managed by a multimedia changeover.
TIGER E5 supports the most advanced RDS dynamic services, including TMC, ODA, IH, TDC, EWS, Radio Text and Radio Text plus. TIGER E5 allows to interface Radio Automation Systems to display song title, artist and other information, but always compliant to the CENELEC (Europe), NRSC (America) and UECP v7.05. The built-in ITU BS412 multiplex power controller acts on the output to meet even the most strict European government regulations. To control all these functions, a web interface has been created that can be used by any browers with any device from the smartphone to the laptop. To satisfy the most demanding technicians TIGER E5 is SNMP v2c.
Tiger e3/e5 manages different kind of audio sources as Analog & Digital audio, IP-Audio, Backup-Player and MPX, thanks to the 4 channels audio changeover and 2 channel MPX Changeover. The internal delay can be assigned to any source and allows the time alignment of two or more sources. It is possible to use the internal audio player as a backup if all the external sources fail. The internal limiter continuously monitors the sources audio levels, allowing the level managing and avoiding any overshoot generated by the satellite or IP-Audio MPEG decompression.
MPX inputs are decoded (L&R) and available to be used as sources for the Audio Changeover or MPX Changeover. MPX Changeover features a UECP filter that allows the regeneration or filtering of any RDS service (PS, RT,RT ,IH,TMC,TA/TP), thus giving the user the chance to maintain, replace or filter any RDS parameter starting from the incoming RDS signal.
Changeover / FM Monitoring System with integrated Tuner. TIGER E5 can manage and decode MPX and RDS signals, receive IP Audio streaming signals, receive and analyze Analog and Digital audio signals. Thanks to the 4 channels Audio changeover and MPX Changeover it can handle every kind of received signal in a transmitting site.
Easy Access
Tiger e3/e5 is fully configurable via WEB interface. Its web server is compatible with all the available web browsers (Chrome, Firefox, Edge, Opera, Safari…). Tiger e3/e5 supports laptop, tablet and smartphones simplifying the browsing and setting of the device with its responsive-kind graphic interface that adapts the viewing mode according to the resolution and position (portrait/landscape) of the current viewing device. The provided WiFi USB dongle creates a specific WiFi hotspot that enables the access to the device without the need of cabled or wireless net. Tiger e3/e5 features 3 IPV4 and 3 IPV6 addresses to ensure concurrent connection for all the broadcasting and monitoring systems.
Easy Maintenance
Any first-time user can take advantage of Tiger e3/e5 simplified settings management. EASY CONFIGURATION FUNCTION quickly and easily enables the user to set the working mode, while QUICK RDS SETUP brings the mostly simple way to set the main RDS parameters. IMPORT/EXPORT and PRESET MANAGER are available for a more advanced management of Tiger e3/e5. These functions apply to the whole device configuration or only to some selectable modules (SYSTEM, RDS, MPX, AUDIO, MULTIMEDIA and TUNER). Tiger e3/e5 uses a uSD card to create an automatic copy of all the device data whenever the user changes anything. If the device needs to be replaced or duplicated, the uSD card can be used to clone it.
Monitoring
Tiger e3/e5 features an endearing GUI (Graphical User Interface) that makes use of clear elements, rich of information. With a simple and straightforward selection of the available banners, it is possible to keep under control any function. The selected banners are always visible in any menu. Tiger e3/e5 displays in both graphical and numerical format all the input and output levels as well as the internally generated signals. The visualization can be numerical, bar graph or time related. In the RDS section, a specific area is available for on-air RDS group analysis (static and dynamic) to evaluate services balancing. In the MPX section, spectrum analyzers display the MPX RDS input and output signals.
Tiger e3/e5 provides two independent listening paths for every internal audio source:
Local: using the headphone socket on front panel and the display to select the source
Remote: using the internal IP audio encoder that enables the remote audio receiving with different listening quality choices
The MPX decoder let the user listen to the decoded L&R audio for any of the MPX sources, input, output or internal.
| Analog Left & Right Input | |
|---|---|
| Connector | Balanced on 2 XLR – EMI Suppressed |
| Input Impedance | 10Kohm |
| Nominal Input Level (Sensitivity) | Software Adjustable from -12dBu to + 13,0 dBu (0,1dB step) |
| Nominal Input Level | -21,0dBu ÷ +24,0dBu |
| Max Input Level (clipping point) | Selectable +15,0dBu or +24,0dBu |
| A/D conversion | CS4272, 24 bit / 48 Khz |
| Input CMRR | >60dB (20Hz-20kHz) |
| Digital Input | |||||
|---|---|---|---|---|---|
| Connector | Balanced on 1 XLR – EMI Suppressed | ||||
| Input Impedance | 110Ω | ||||
| Standard | AES3 | ||||
| Audio Sample Rate | 32/44.1/48/96/192KHz | ||||
| Adjustable Nominal Input Level (Sensitivity) | From -25,0dBFS to -0,2dBFS (0,1dB step) | ||||
| Nominal Input Level | -36dBFS ÷ 0,0dBFS | ||||
| Dynamic Range (Converter Values) | 124dB (32KHz) – 126dB (44,1KHz) 126dB(48KHz) – 122dB (96KHz) | ||||
| Resolution | 24 bit |
| MPX Input – MPX | |
|---|---|
| Connector | Unbalanced on 2 BNC – EMI Suppressed |
| Input Impedance | 50K |
| Adjustable Nominal Input Level (Sensitivity) | Software Adjustable -9dBm to +15,0dBm |
| Range of Level | -21,0dBu ÷ +24,0dBu |
| Max Input Level (clipping point) | Selectable +5,0dBu or +18,0dBu |
| A/D Conversion | Texas PCM4202 |
| MPX Output – MPX | |
|---|---|
| Connector | Unbalanced on 2 BNC – EMI Suppressed |
| Output Impedance | 10 Ω |
| Load Impedance | 600 Ω or greater |
| Maximum Load Capacitance | 5nF |
| D/A Conversion | Texas PCM 1796 |
| Composite Output Level | -0,0dBm to +15,0 dBm (0,1 dBm step) |
| S/N | ≥ 85dB |
| THD | ≤ 0.01% |
| Separation | ≥ 70dB |
| Analog Output AUDIO – Only for Tiger X3 & X5 | |
|---|---|
| Output Number | 1 |
| Connectors | 2 XLR, female – Electronically balanced – EMI Suppression |
| D/A Conversion | 24 bit Sigma-Delta Conversion (Crystal CS4272) |
| Output Level | -6.0 dBu to +20.0 dBu (0.1 dBu Step) |
| Output Level Max. | + 24,0 dBu |
| Impedance Source | 10 Ω |
| Load Impedance | 600 Ω or greater |
| THD + Noise | Less than 0.01% (0.0dBu @ 1 kHz) |
| Signal to noise Ratio | >80 dB unweight – 100% Mod. 20 Hz–15 KHz |
| L/R CrossTalk | < –70 dB, 20 Hz–15 KHz |
| Pre-emphasis | OFF, 50 µsec, 75 µsec |
| FM Frequency range | 5 Hz-15 kHz (+/- 0,5dB when processing is disabled) |
| DAB Frequency range | 5 Hz-20 kHz (+/- 0,5dB when processing is disabled) |
| Digital Output AUDIO – Only for Tiger X3 & X5 | |
|---|---|
| Outputs Number | 2 (1st for audio, 2nd for audio or Digital MPX) |
| Connectors | Balanced on 1 XLR – EMI Suppression |
| Format | AES3/EBU |
| Output impedance | 110 Ω |
| Sample rates | 32 kHz / 44.1 kHz / 48 kHz / 96 kHz / 192 kHz Software selectable |
| Resolution | 24 bit |
| Operative Nominal level | From 0.0 dBFs to -30dBFs (0.1 dBu step) |
| Dynamic Range | 125 dB (Typ), 122 dB (Min) |
| Distortion | Less than 0.01% TDH+NOISE (0.0 dBu 1 Khz) |
| Pre-emphasis | OFF, 50 µsec, 75 µsec |
| FM Frequency range | 2 Hz-15 kHz (+/- 0,025 dB when processing is disabled) |
| DAB Frequency range | 2 Hz-20 kHz (+/- 0,025 dB when processing is disabled) |
| Backup Player | |
|---|---|
| Support | On Micro SD CARD (max 64GB) |
| Supported formats | MP3, WAV |
| Supported Sample Rates | 32,44.1,48,64,96 KHz |
| MPX & RDS Signal | |
|---|---|
| Pilot Frequency | 19 KHz +/- 1Hz |
| Pilot Injection | Adj from -25,0dB a -15,5dB (0,1 dB step); 6 to 18% of total deviation |
| Pilot Stability | ±10 ppm (-10 to +55°C) |
| Pilot Distortion | 0,05% (typical) |
| Pilot Distortion + Noise | 0,068% (on 100KHz band) |
| Composite out THD | 0,01% (typical on the whole band) |
| Stereo Separation | >70 dB (typical on the whole band) |
| Linear Crosstalk Main to Sub / Sub to Main | >70 dB (minimum) |
| Digital filtering / band | 30 Hz to 15 kHz (-0,1dB), 17 kHz (-70 dB), 19 kHz (-100 dB) |
| 57 kHz (RDS/RBDS) Protection | Better than 51 dB |
| Pre-emphasis | Off, 50uS, 75uS (+/-0,1dB) |
| Freq Response | ±0,3 dB (30Hz-15kHz) |
| Operation | Mono / Stereo |
| MPX/RDS Output | Adj from -10,0 dB to 15,0 dB (0,1 dB step) |
| Signal/Noise Ratio | ≥ 85 dB (on 100 kHz band) |
| Carrier Suppression | > 85 dB |
| Digital Output MPX | |
|---|---|
| Connectors: | Balanced on 1 XLR – EMI Suppression |
| Input impedance: | 110 Ω |
| Format: | AES192 |
| Sample rate: | 192 KHz |
| Output level adjustment: | From 0,0 dBFs to –30,0 dBFs (0,1 dB steps) |
| Digital Input MPX | |
|---|---|
| Connectors | Balanced on 1 XLR – EMI Suppression |
| Input impedance | 110 Ω |
| Format | AES192 |
| Sample rate | 192 kHz |
| Nominal input level (sensitivity) | From 0 dBFs to –25,0 dBFs (0,1 dB step) |
| System | |
|---|---|
| GPIO Inputs/Outputs | 6 GPI / 4 GPO |
| Communication Port | 2xRS232, 3xUSB, 1xLAN |
| Synchronization | Ext(Pilot Mpx)/Int/ Auto |
| Synchronization Monitoring | Yes |
| RDS Level adjustment | Digitally controlled |
| Phase adjustment | Yes, 0 ÷ 359.9° |
| Separate outputs for RDS+MPX and for RDS only | Yes |
| Command to activate the RDS SCA | Yes |
| Side Chain Mode, Loop through mode, Bypass feature | Yes |
| RDS Subcarrier | 100% Digitally Generated Shape |
| CENELEC – EN50067 compliant – | Yes |
| Accurate Clock Time (CT) Sync with Internet Connection | Yes |
| Remote TA actuation for Traffic Announcements | Yes |
| GPS module for automatic synchronization of the built-in Real Time Clock (RTC) | Optional (USB External) |
| RDS decoder for rebroadcasting RDS Data | Yes |
| Firmware can be upgraded on the field | Yes |
| Front-panel Colour TFT Display | No (Tiger E3) Yes (Tiger E5) |
| Data may be entered on-site with Front-panel knob | No (Tiger E3) Yes (Tiger E5) |
| Front Panel Leds | 40 |
| Operating Temperature | 0°C ÷ 50°C |
| RDS Features | |
|---|---|
| Group supported | All |
| Group Sequence | Configurable |
| PS | 8 DSN x MAIN+10 PSN |
| PI | 8 DSN x MAIN+10 PSN |
| PIN & PTY | RDS/RBDS |
| AF Method A | up to 1024 (64 lists) |
| AF Method B | up to 1024 (64 lists) |
| RT | Yes, 32 messages |
| RT rate adjustment | Group Sequence |
| RT+ for songs and content tagging | Yes |
| TP | Yes |
| TA Control | Command, Software, GPI |
| PTYN | Yes |
| EON | 10 PSN |
| CT | Yes |
| TMC, EWS, IH, TDC | Yes |
| Free Format Groups (FFG) | Yes |
| Open Data Application (ODA) | Yes |
| PS Scrolling | Yes |
| Scrolling by characters, by word, auto centre, truncate long words | Yes (Characters – from 1 up to 8) |
| Communication | |
|---|---|
| Connection with Automation Software | Yes |
| Network Connectivity | 4 TCP ports / 4 UDP / 1 SNMP |
| Configuration Software | Web Server, FTP |
| Password Protection | Yes |
| ASCII Protocol | Configuration Messages |
| REST Command | Yes |
| Alert notifications on user-defined events via SNMP traps or E-mails | Yes |
| Embedded SNMP agent permitting active management tasks | Yes |
| Supported Network Protocols | HTTP, SMTP, UDP, TCP, NTP, FTP |
| UECP Protocol | EBU SPB490 Ver.7.05 |
| PI Calculator | Yes |
| RDS 2.0 Ready | Yes |
| PSU | |
|---|---|
| Power Supply | 90-260 Vac / 47-63 Hz 15W |
| Dimensions | |
|---|---|
| Dimensions (W; H; D) | 485 x 44 x 240 mm |
| Weight | < 3Kg |
