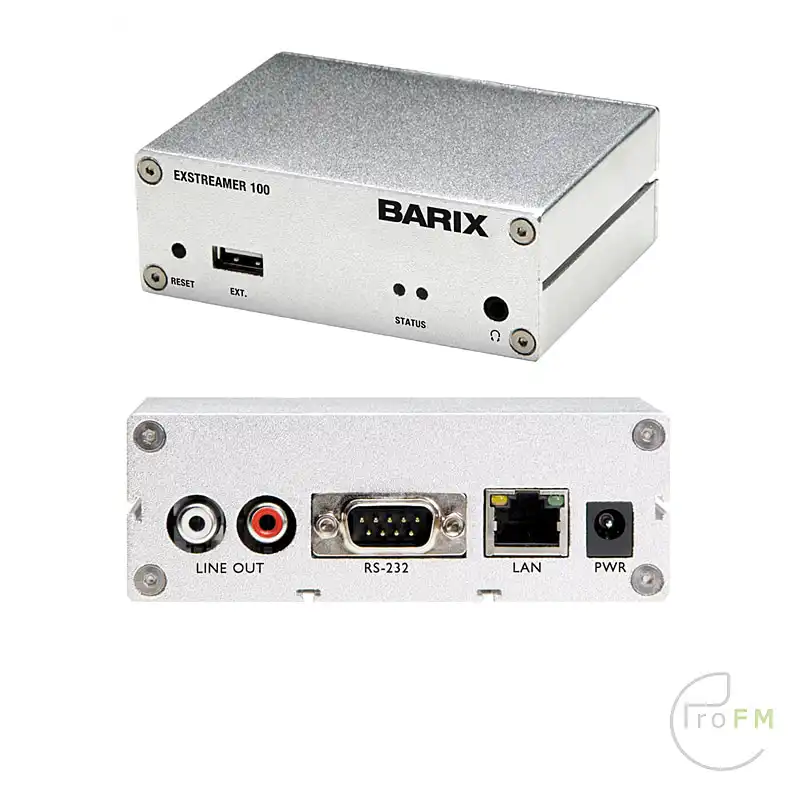

Barix Exstreamer 100 Audio over IP Decoder

The Barix Exstreamer 100 is a versatile network audio decoder for a variety of applications. It enables users to create flexible, cost-effective distributed audio systems using standard IP technology. The Barix Exstreamer 100 plays MP3 (soon also G.711 & PCM) audio files from PC or web server (http) as well as legacy digital and analog sources (using the Barix Instreamer) and streams from sources like Shoutcast, Icecast (Internet radio) or RTP servers (Instreamer).
The device is easily controlled by a standard web browser and with the optional Barix IR remote control.With serial and Ethernet control APIs, the device can also be managed from typical automation systems. Installing the Barix Exstreamer 100 is fast and simple due to its unique features SonicIP and IPzator: On power up the device findes a correct IP address and announces it over the audio and headphone outputs !

Highlights

• 10/100 Mbit/s ethernet connection
• Streams from PC, Web, Shoutcast, Icecast and RTP servers in MP3 format
• Separate firmware for WMA and MP3 streaming (http, UDP, RTP) with automatic failover and USB playback available
• Is easily controlled over standard web browser (PC, palm, etc.), IR remote control or API (serial, TCP, UDP, cgi)

Applications

• Multiroom IP Audio System Receiver
• Internet Radio Receiver
• Instore Audio Player
• SIP and IP Paging Zone Device
• Digital Annunciator, Message Player, Message Repeater
• Generic VoIP decoder for IP Paging and Announcement applications
• Commercial Audio Streaming Applications

Features

• AACplus, MP3, Ogg Vorbis,WMA, G.711, PCM linear Decoding
• IP Streaming via TCP, UDP, RTP, Multicast
• Line Level Output (Stereo)
• Relay Output (Ex110 & Ex120 only)
• RS-232 Serial Port
• Power Supply (9-30V, plug included)
• IR receiver and Display built-in (Ex110 & Ex120 only)
• MicroSD or USB Flash Interface

ANALOG OUTPUT
Line level output, 40..60 Ohm output impedance on RCA and 1/8″ headphone jack. Output level software controllable
Full scale output voltage: 5.6 dBu, 4 Vpp
Frequency response (-3dB) 19Hz ..22kHz *
Dynamic range 87 dB
SNR/THD -87 dB, <0.05%

AUDIO FORMATS
MP3 CBR/VBR, up to 320kbps, 8..48kHz sample freq.
AAC, AAC plus, AAC-HE (AAC plus V2)
WMA (up to version 9), Ogg Vorbis
PCM 16bit @8, 16, 22.05, 24, 32, 44.1, 48 kHz
G.711, uLaw, aLaw (sample rates same as PCM)

DISCRETE I/O
1 NO relay contact, 24V 0.5A (110&120 models only)

RS-232 INTERFACE
300..230’400 Baud asynchronous, tunneling or local control

DIMENSIONS (W X H X D) & Weight
108x38x78.7mm (4.25×1.5×3.1 inch)
250Gr
