Description
Deva Broadcast DB90 TX Audio over IP Encoder
DB90-TX is an integrated audio converter that converts audio signal into a high quality compressed audio stream. The signal can be compressed by HE-AAC, MPEG-1 Layer 3 encoder. DB90-TX also supports uncompressed PCM stream in order to ensure audio transmission without quality loss. Compression is performed in real time, and the output signal is transmitted directly by IP-based networks. DB90-TX can work with both analog and digital audio signal. No matter how sophisticated, DB90-TX is located in a small and compact housing. All this allows you to quickly and painlessly integrate existing audio systems to the Internet.

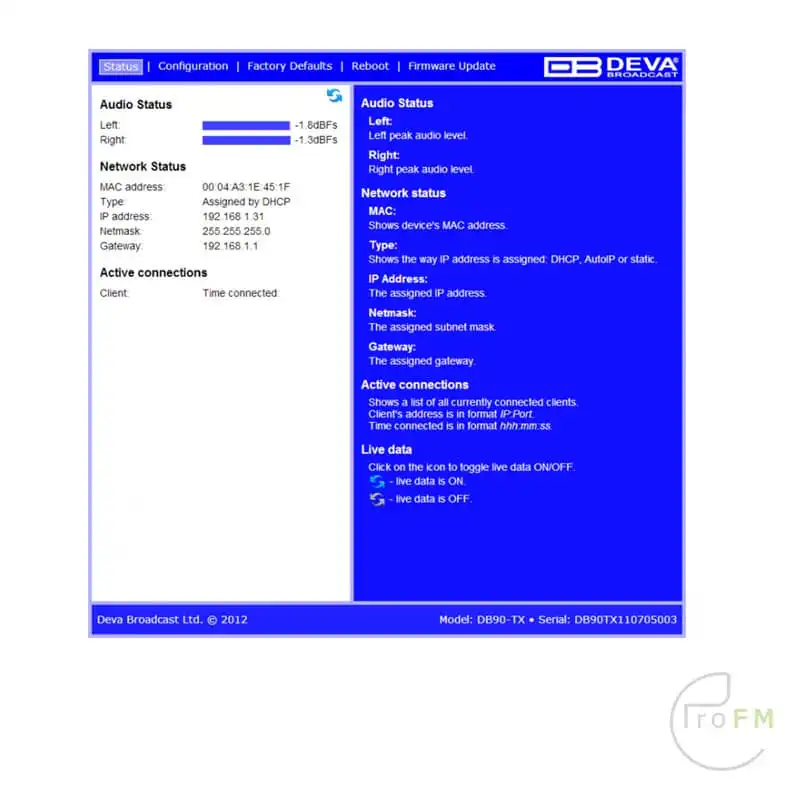

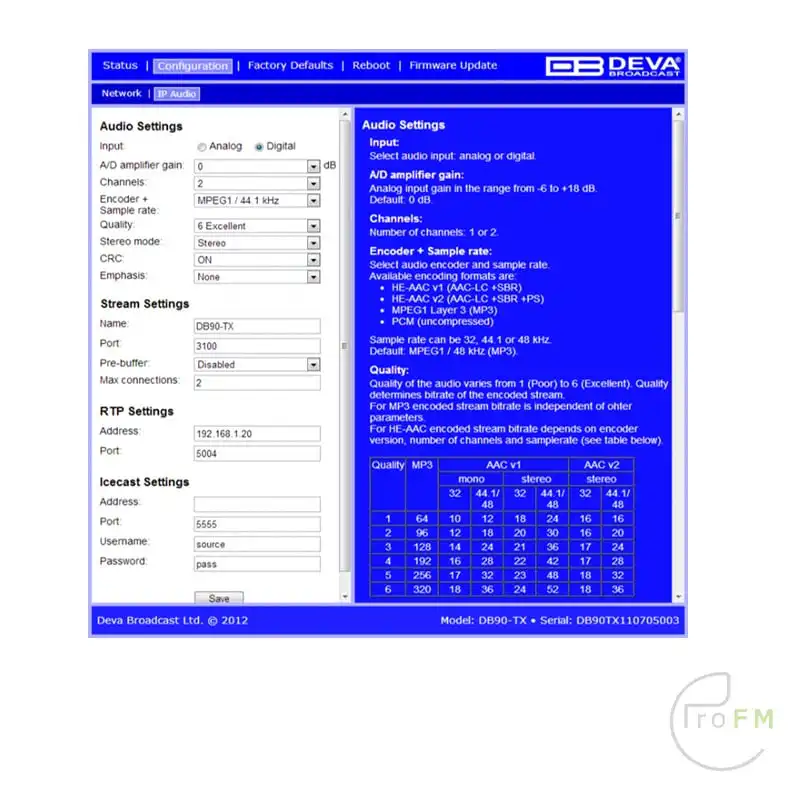

Developed with the thought of easiness of use, DB90-TX can be managed through a standard Web browser, PC, PDA or other device, making it the best choice for professional and consumer use.
Application:
Audio transmission over IP-based networks Point-to-Point Audio Transfer
(DB90-RX is required at the opposite site)
Suitable for professional and consumer use
Features:
- High Quality HE-AAC (v.1 and v.2) and MPEG-1 Layer-3 Compression
- 32 kHz, 44.1, 48 and 96 kHz sample rates support
- Up to 56 kbps bitrate for HE-AAC Up to 320 kbps bitrate for MPEG-1 Layer-3
- Up to 3072 kbps for PCM 6 LEDs and Phones output for quick diagnostics IP address pronunciation at startup (through the headphones)
- DHCP Client automatically assigning Network Settings
- Full Control and easy setup via a standard web browser UPnP for easy discovery in Local Networks
- Shoutcast / Icecast compatible TCP/IP stream
- Analog Audio Input (2 x RCA connectors)
- Digital Audio Input (RCA Connector)
- RJ-45 Ethernet Connector Up to 10 simultaneously connected clients
| Audio codec | |
| Codec | HE-AAC (v.1 and v.2), MPEG-1 Layer 3 or raw PCM |
| Sample rates | 32 kHz, 44.1 kHz and 48 kHz |
| Channels | 1 or 2 |
| Bitrate | Up to 56 kbps (HE-AAC); Up to 320 kbps (MPEG-1); Up to 3072 kbps (PCM); |
| MPEG-1 Layer 3 specific | |
| Encoding mode | Mono and Stereo, Joint Stereo or Dual Channel |
| Emphasis | 50µs, CCITT J.17 or none |
| PCM codec | |
| Channels | 1 or 2 |
| Bitrate | Up to 3072 kbps |
| Analog audio input | |
| Connector | 2 x RCA, stereo |
| Type | Unbalanced |
| Level | 6 dBu (max. 8dBu) |
| Sample rate | 96 kHz; Build-in sample rate converter used to produce lower sample rates |
| Dynamic range | 102 dB |
| Digital audio input | |
| Connector | RCA |
| Type | S/PDIF (IEC 60958) |
| Resampling | Thru build-in sample rate converter |
| Phones audio output | |
| Connector | 3.5mm jack, stereo |
| Type | Headphones |
| User interface | |
| Indicators | 6 LEDs on front panel |
| Web interface | Full control and status information |
| Streaming server | |
| Type | Shoutcast / Icecast compatible TCP/IP stream |
| Clients | Limit Up to 10 simultaneous clients |
| Network | |
| Connector | RJ-45 |
| Type | Ethernet |
| Device discovery | UPnP support |
| Operating conditions | |
| Temperature | 10°C – 45°C |
| Humidity | < 75%, non-condensing |
| Power requirements | |
| Connector | Power Jack 6,3mm |
| Power supply | 12V DC, 1A |
| Size and Weight | |
| Dimensions (W;H;D) | 106 x 33 x 128 mm |
| Shipping Weight | 230 x 54 x 172 mm / 0.7kg |
