Description

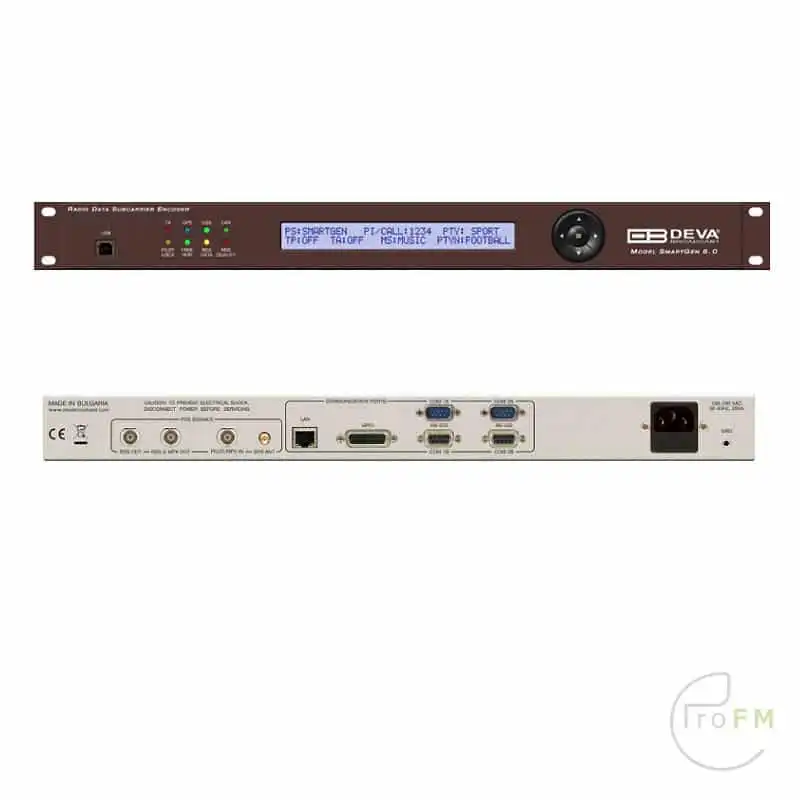

Deva Smartgen 6.0 UECP Compatible RDS/RBDS Encoder with LAN, USB & RS-232 Connectivity
Based on the latest RDS technology, SmartGen 6 guarantees fully digital synthesis of the RDS signal, with excellent quality and spectral purity. This advanced device is a cost-effective solution for sending of TMC, EWS Services and song tagging via the supported RT function.
The local (RS232, USB) and remote (TCP/IP, UDP/IP) interfaces permit fast and full integration of the RDS/RBDS encoder to the station’s other functions, including message streams for digital radio and Webcasting.
SmartGen 6 is supplied with two separate outputs – one for RDS MPX and one for RDS only. The need of highly-accurate time source is satisfied not only by the supported SNTP but also by the built-in GPS Module.
An impressive feature of SmartGen 6 is the SNMP agent software component, which reports information via SNMP to one or more administrative computers (managers). SmartGen 6 complies with SNMPv2C. The function SNMP traps or E-mail notification on user-defined alerts is also available.
| Power Supply | Internal 100 – 240V; 50 – 60Hz |
| Pilot/MPX Input | Yes |
| MPX/RDS Output | 0 to 4095 mV |
| Inputs/Outputs | 2 x GPI, 4x GPO user-defined functionality |
| Communication Port | 2xRS232, USB, LAN |
| Synchronization | External (Pilot or MPX) / Internal / Auto |
| Synchronization Monitoring | Yes |
| RDS Level adjustment | Digitally controlled |
| Phase adjustment | Yes, 0 ÷ 359.9° |
| Separate outputs for RDS MPX and for RDS only | Yes |
| Command to activate the RDS SCA | Yes |
| Side Chain Mode, Loop through mode, Bypass feature | Yes |
| RDS Subcarrier | 100% Digitally Generated Shape / Bypass: 0 dB |
| Pilot synchronization | Input Level: -50dBu to 12dBu / Frequency: 19kHz, ±3Hz |
| EN50067 compliant | Yes |
| Accurate Clock Time (CT) Sync with Internet Connection | Yes |
| Remote TA actuation for Traffic Announcements | Yes |
| GPS module for automatic synchronization of the built-in clock | Yes |
| Fully independent RDS decoder for self-monitoring purposes | Yes |
| Firmware can be upgraded in the field | Yes |
| Front-panel LCD displays all programmed data | Yes |
| Data may be entered on-site with Front-panel Buttons | Yes |
| Operating Temperature | 0°C ÷ 55°C |
| RDS Features | |
| Group supported | All |
| Group Sequence | Configurable |
| PS | 6 DSN x 4 PSN |
| PI | 6 DSN x 4 PSN |
| PTY | RDS/RBDS |
| AF Method A | 25 |
| AF Method B | up to 100 |
| RT | Yes, 10 messages |
| RT rate adjustment | Group Sequence |
| RT for songs and content tagging | Yes |
| TP | Yes |
| TA Control | Command, Contact closure, Software |
| PTYN | Yes |
| EON | 4 PSN |
| CT | Yes |
| TMC, EWS, IH, TDC | Yes |
| Free Format Groups (FFG) | Yes |
| Open Data Application (ODA) | Yes |
| 64-character Dynamic PS shown on all RDS/RBDS Radios | Yes |
| Auto “parses” long messages for best text display | Yes |
| Scrolling by character | from 1 up to 8 |
| Scrolling by word, Auto centering, Truncate long words | Yes |
| Communication | |
| Communication Interfaces | 2xRS232, USB, LAN |
| Connection with Automation Software | Yes |
| Network Connectivity | 2 TCP ports; 2 UDP ports |
| Scheduler | Yes |
| Configuration | Embeded Web Server, SmartGen Manager |
| Password Protection | Yes |
| ASCII Protocol | Yes |
| UDP, TCP, HTTP, SNTP | Yes |
| Alert notifications on user-defined events via SNMP traps or E-mails | Yes |
| Embedded SNMP agent permitting active management tasks | Yes |
| Custom HTML formatted E-mail templates with dynamic variables | Yes |
| Supported Network Protocols: | HTTP, FTP, SNMP, SNTP, SMTP, UPnP, UDP, TCP |
| UECP Protocol | Fully compliant with EBU SPB490 Ver.7.05 |
| PI <=> CALL Calculator | Yes |
| Remote Display | Yes |
| Supplied with Intuitive Software | Yes |
| Comes with 2-years Limited Warranty | Yes |
| Size and Weight | |
| Dimensions (W;H;D) | 485 x 44 x 178 mm |
| Shipping Weight | 540 x 115 x 300 mm / 2.5kg |
