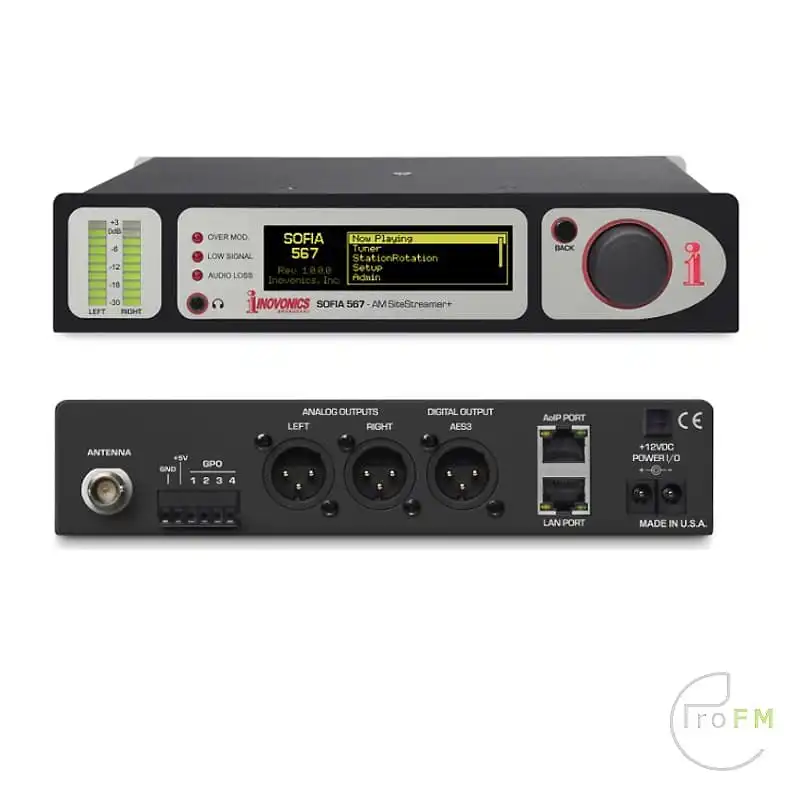

Inovonics Sofia 567 AM Radio Site Streamer Plus/AM monitor

The SOFIA 567 provides analog, AES3-digital and AoIP-streaming audio outputs. The Web Interface enables remote tuning, streamed audio, source switching, alarms, and more. Multiple stations can be sequentially monitored using the programmable StationRotation™ feature. The SOFIA 567 includes a built-in BandScanner™, a real-time clock and full SNMP functionality. The elite SiteStreamer ™ (‘Plus’) series offers advanced features for the most critical monitoring situations. The SiteStreamer ™ also delivers important RF and audio signal measurements and dispatches email or text-message alarms for out-of-limits conditions and other reception errors.

Main Features:

• Fulltime off-air program audio is available simultaneously as L/R-analog, AES3-digital and Dante®-based AES67 AoIP streaming, all with adjustable levels, plus a multi-listener Internet IP stream and front-panel headphone jack.
• Install the SiteStreamer within the reception contour of your station and monitor off-air analog FM via the Web from anywhere in the world.
• The SOFIA 567 Internet-listening stream supports up to 10 listeners at once.
• Front-panel alarms and/or rear-panel ‘tallies’ indicate Audio Loss, Low Signal, and AM Reception Loss.
• Easy front-panel setup uses jog-wheel menu navigation and the front-panel readout. The corresponding Web interface offers a detailed presentation and additional options.
• Enhanced alarm logging includes the duration of each alarm, and there is virtually no limit to the number of alarms that can be logged.
• Real-Time Clock has battery backup.
• GPOs may be user-assigned to specific alarm functions.
• The half-rack package features an OLED hi-res graphic display, wide-range LED level meters and individual alarm LEDs with rear-panel tallies.
• SNMP utility is fully supported.
• The built-in BandScanner displays a spectrum plot of the entire AM band (or a user-selected portion).

Tuning Range
520kHz to 1710Hz in 10kHz steps or 522kHz to 1710kHz in 9kHz steps

Antenna Input
75Ω (BNC).

Receiver Sensitivity
≤100μV for 40dB SNR with 6kHz BW

Audio Response
Selectable (–6dB): 6kHz, 4kHz, 3kHz, 2kHz

Graphs and Metering
L, R Audio; Audio; RSSI, RF SNR, and histograms.

Program Audio Outputs:
Balanced Analog (XLR) Left and Right outputs are adjustable from –15dBu to 15dBu in 0.1dB steps.
AES Digital (XLR) output at 44.1kHz or 48kHz is adjustable from –30dBFS to 0dBFS in 0.1dB steps.
Headphone Jack (3.5mm TRS) has adjustable listening level.

Streaming Audio
MP3 or OGG (selectable) streams have bitrates from 32kbps to 256kbps and sampling rates from 16kHz to 48kHz.

Alarms
Audio Loss: Alarm On/Off thresholds and Time On/Off intervals are programmable.
Low Signal: Alarm and reset trigger levels are independently adjustable relative to the AM carrier level display and have programmable Time On/Off timings.
Email Alerts: Email or SMS/text-messaging can alert selected personnel to specific alarms.
Alarm ‘Tallies’: Individual open-collector NPN transistor outputs to ground are programmable for logic polarity and GPO assignment.

Real-Time Clock
Auto-sets to Internet time; auto/manual DST setting, battery backup.

AoIP Port
Dante®-based, AES67-compatible (selectable) AoIP utility has independent IP, Audio Format and Transmit Flow settings.

LAN Port
LAN connection to local network or Internet provides remote monitoring (listening and SOFIA 568 control); user-program­mable network setup and streaming parameters.

Power Requirement
12VDC at 450mA; a universal 90-240VAC inline switching power supply is included with the SOFIA 567 SiteStreamer .

Mounting Options
An optional rack adapter mounts one or two half-rack modules in a 1U, 19-inch rack space.

Size and Weight
1.6”H x 8”W x 6”D; 5 lbs. shipping weight.
