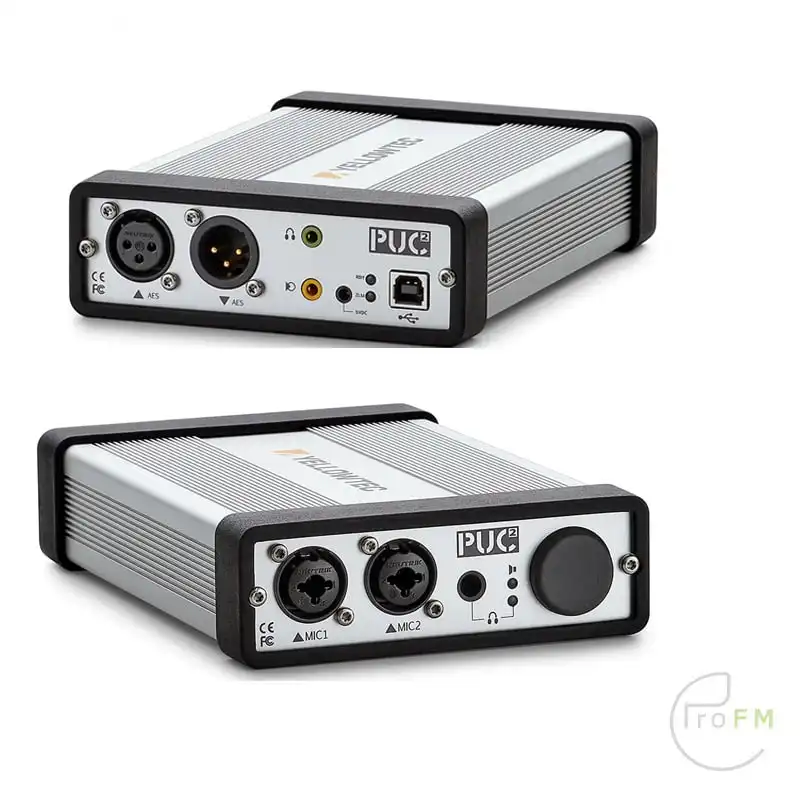

YellowTec PUC2 Mic LEA USB Audio Interface

$838.21

YellowTec PUC2 Mic LEA USB Audio Interface

Choose the PUC2 Mic LEA USB Audio Interface to get perfect audio levels with your favored XLR-microphone. Thanks to its onboard LEA Level Energy Arbitration, PUC2 Mic LEA delivers perfectly leveled recordings.

Description

YellowTec PUC2 Mic LEA USB Audio Interface

Choose the PUC2 Mic LEA USB Audio Interface to get perfect audio levels with your favored XLR-microphone. Thanks to its onboard LEA Level Energy Arbitration, PUC2 Mic LEA delivers perfectly leveled recordings. You donā€™t need any time-consuming post-processing. LEA provides you with real-time audio processing and captures perfect levels without any clipping. PUC2 Mic LEA overcomes the problems of noisy recording environments and prevents any over- and under-loading.

PUC2 Mic LEA integrates the real-time LEA DSP Engine from Yellowtec’s iXmĀ Recording Mic into a class-leading USB audio interface. Featuring one of the highest-quality mic preamps available, PUC2 Mic LEA ensures pristine audio quality with zero latency for your microphone signal. Use it to stream two channels of mic recordings via USB or use it as a standalone A/D converter with its preamp and LEA Level Energy Arbitration.

DETAILS

  • High-definition USB Audio Interface to optimize your audio quality
  • Get perfectly leveled recordings without any post-processing
  • Designed for recordings by podcasters + journalists + commentators
  • Ā Plug’n’play concept allows for fast handling
  • Integrates the iXm Recording Mic’s LEA Level Energy Arbitration
  • Stream two channels of XLR-mic recordings via USB
  • Plug’n’play concept allows for fast handling
  • Alternatively use it as a standalone A/D converter/preamp
  • Ā Delivers highest available audio standards
  • Ā 192kHz sample rate at 24-bit word-lengthsā€Ø
  • Ā Dynamic range of 114dBā€Ø
  • Zero latency for your mic signal + zero-latency monitoring
  • Digital inputs and outputs
  • Ā Fully USB-powered (USB-2.0 Type B)
  • Ā AES-3 input + output on XLRā€Ø
  • Ā 3.5mm socket to configure zero-latency monitoring
  • Ā ASIO driver for advanced operators
  • Ā Sturdy aluminum unibody serves as a conductor + heat sink
  • Ā Dimensions: 18.5 x 12.7 x 4.5cmĀ  |Ā  Weight: 0.6kg
  • Ā An additional PSU is available to power PUC2 Line

PUC2 Tech Specs



PUC2 Lite PUC2 Line PUC2 Mic LEA
Power < 1000 mA

via USB

< 1000 mA

via dual USB

< 1000 mA

via dual USB + PSU

Clocking Jitter < 15 mUI Peak < 15 mUI Peak < 15 mUI Peak
Frequency Accuracy +/- 10 ppm +/- 10 ppm +/- 10 ppm
Input Selection AES3 only Automatic

with AES Detection

Automatic

with AES Detection

Digital Input Format AES 3 + SPF/DIF AES 3 + SPF/DIF AES 3 + SPF/DIF
Connectors XLR XLR XLR
Sampling Rate 44.1 kHz, 48 kHz, 88.2 kHz,

96 kHz, 176.4 kHz, 192 kHz

44.1 kHz, 48 kHz, 88.2 kHz,

96 kHz, 176.4 kHz, 192 kHz

44.1 kHz, 48 kHz, 88.2 kHz,

96 kHz, 176.4 kHz, 192 kHz

Bit Depth 24 Bit 24 Bit 24 Bit
Digital Output















Analog Input















Analog Output

Format Connectors Sampling Rate

Bit Depth







Electronically balanced Input Level 1 (switchable) Input Level 2 (switchable) Input Level 3 (switchable)

Impedance





Electronically balanced Output Level 1 (switchable) Output Level 2 (switchable) Output Level 3 (switchable)

Impedance

AES 3 + SPF/DIFĀ Ā Ā Ā Ā Ā Ā Ā Ā Ā Ā Ā Ā Ā Ā Ā Ā Ā Ā Ā Ā Ā Ā Ā Ā Ā  AES 3 + SPF/DIFĀ Ā Ā Ā Ā Ā Ā Ā Ā Ā Ā Ā Ā Ā Ā Ā Ā Ā Ā Ā Ā Ā Ā Ā Ā Ā Ā Ā Ā  AES 3 + SPF/DIF

XLRĀ Ā Ā Ā Ā Ā Ā Ā Ā Ā Ā Ā Ā Ā Ā Ā Ā Ā Ā Ā Ā Ā Ā Ā Ā Ā Ā Ā Ā Ā Ā Ā Ā Ā Ā Ā Ā Ā Ā Ā Ā Ā Ā Ā Ā Ā Ā Ā Ā  XLRĀ Ā Ā Ā Ā Ā Ā Ā Ā Ā Ā Ā Ā Ā Ā Ā Ā Ā Ā Ā Ā Ā Ā Ā Ā Ā Ā Ā Ā Ā Ā Ā Ā Ā Ā Ā Ā Ā Ā Ā Ā Ā Ā Ā Ā Ā Ā Ā Ā Ā Ā  XLR

44.1 kHz, 48 kHz, 88.2 kHz,Ā Ā Ā Ā Ā Ā  44.1 kHz, 48 kHz, 88.2 kHz,Ā Ā Ā Ā Ā Ā Ā Ā Ā  44.1 kHz, 48 kHz, 88.2 kHz,

96 kHz, 176.4 kHz, 192 kHzĀ Ā Ā Ā Ā Ā  96 kHz, 176.4 kHz, 192 kHzĀ Ā Ā Ā Ā Ā Ā Ā Ā  96 kHz, 176.4 kHz, 192 kHz

24 BitĀ Ā Ā Ā Ā Ā Ā Ā Ā Ā Ā Ā Ā Ā Ā Ā Ā Ā Ā Ā Ā Ā Ā Ā Ā Ā Ā Ā Ā Ā Ā Ā Ā Ā Ā Ā Ā Ā Ā Ā Ā Ā Ā Ā Ā  24 BitĀ Ā Ā Ā Ā Ā Ā Ā Ā Ā Ā Ā Ā Ā Ā Ā Ā Ā Ā Ā Ā Ā Ā Ā Ā Ā Ā Ā Ā Ā Ā Ā Ā Ā Ā Ā Ā Ā Ā Ā Ā Ā Ā Ā Ā Ā Ā  24 Bit







@ Full Scale

+6dBu / max +15dBuĀ Ā Ā Ā Ā Ā Ā Ā Ā Ā Ā Ā Ā Ā Ā Ā Ā  -āˆž … +18dBu

+4dBu / max +15dBu

+5dBu / max +15dBu



18 kOhm typ.Ā Ā Ā Ā Ā Ā Ā Ā Ā Ā Ā Ā Ā Ā Ā Ā Ā Ā Ā Ā Ā Ā Ā Ā Ā Ā Ā Ā Ā Ā Ā  Mic typ 1.2 kOhm Live typ 10 kOhm



@ Full ScaleĀ Ā Ā Ā Ā Ā Ā Ā Ā Ā Ā Ā Ā Ā Ā Ā Ā Ā Ā Ā Ā Ā Ā Ā Ā Ā Ā Ā Ā Ā Ā Ā Ā Ā Ā  Not balanced

+6dBu / max +15dBuĀ Ā Ā Ā Ā Ā Ā Ā Ā Ā Ā Ā Ā Ā Ā Ā Ā  Adjustable Volume

+4dBu / max +15dBu

+5dBu / max +15dBu

40 Ohm typ.Ā Ā Ā Ā Ā Ā Ā Ā Ā Ā Ā Ā Ā Ā Ā Ā Ā Ā Ā Ā Ā Ā Ā Ā Ā Ā Ā Ā Ā Ā Ā Ā Ā Ā  < 16 Ohm,

Headphones with up to

600 Ohm can be used

Description

YellowTec PUC2 Mic LEA USB Audio Interface

Choose the PUC2 Mic LEA USB Audio Interface to get perfect audio levels with your favored XLR-microphone. Thanks to its onboard LEA Level Energy Arbitration, PUC2 Mic LEA delivers perfectly leveled recordings. You donā€™t need any time-consuming post-processing. LEA provides you with real-time audio processing and captures perfect levels without any clipping. PUC2 Mic LEA overcomes the problems of noisy recording environments and prevents any over- and under-loading.

PUC2 Mic LEA integrates the real-time LEA DSP Engine from Yellowtec’s iXmĀ Recording Mic into a class-leading USB audio interface. Featuring one of the highest-quality mic preamps available, PUC2 Mic LEA ensures pristine audio quality with zero latency for your microphone signal. Use it to stream two channels of mic recordings via USB or use it as a standalone A/D converter with its preamp and LEA Level Energy Arbitration.

DETAILS

  • High-definition USB Audio Interface to optimize your audio quality
  • Get perfectly leveled recordings without any post-processing
  • Designed for recordings by podcasters + journalists + commentators
  • Ā Plug’n’play concept allows for fast handling
  • Integrates the iXm Recording Mic’s LEA Level Energy Arbitration
  • Stream two channels of XLR-mic recordings via USB
  • Plug’n’play concept allows for fast handling
  • Alternatively use it as a standalone A/D converter/preamp
  • Ā Delivers highest available audio standards
  • Ā 192kHz sample rate at 24-bit word-lengthsā€Ø
  • Ā Dynamic range of 114dBā€Ø
  • Zero latency for your mic signal + zero-latency monitoring
  • Digital inputs and outputs
  • Ā Fully USB-powered (USB-2.0 Type B)
  • Ā AES-3 input + output on XLRā€Ø
  • Ā 3.5mm socket to configure zero-latency monitoring
  • Ā ASIO driver for advanced operators
  • Ā Sturdy aluminum unibody serves as a conductor + heat sink
  • Ā Dimensions: 18.5 x 12.7 x 4.5cmĀ  |Ā  Weight: 0.6kg
  • Ā An additional PSU is available to power PUC2 Line
Specifications

PUC2 Tech Specs



PUC2 Lite PUC2 Line PUC2 Mic LEA
Power < 1000 mA

via USB

< 1000 mA

via dual USB

< 1000 mA

via dual USB + PSU

Clocking Jitter < 15 mUI Peak < 15 mUI Peak < 15 mUI Peak
Frequency Accuracy +/- 10 ppm +/- 10 ppm +/- 10 ppm
Input Selection AES3 only Automatic

with AES Detection

Automatic

with AES Detection

Digital Input Format AES 3 + SPF/DIF AES 3 + SPF/DIF AES 3 + SPF/DIF
Connectors XLR XLR XLR
Sampling Rate 44.1 kHz, 48 kHz, 88.2 kHz,

96 kHz, 176.4 kHz, 192 kHz

44.1 kHz, 48 kHz, 88.2 kHz,

96 kHz, 176.4 kHz, 192 kHz

44.1 kHz, 48 kHz, 88.2 kHz,

96 kHz, 176.4 kHz, 192 kHz

Bit Depth 24 Bit 24 Bit 24 Bit
Digital Output















Analog Input















Analog Output

Format Connectors Sampling Rate

Bit Depth







Electronically balanced Input Level 1 (switchable) Input Level 2 (switchable) Input Level 3 (switchable)

Impedance





Electronically balanced Output Level 1 (switchable) Output Level 2 (switchable) Output Level 3 (switchable)

Impedance

AES 3 + SPF/DIFĀ Ā Ā Ā Ā Ā Ā Ā Ā Ā Ā Ā Ā Ā Ā Ā Ā Ā Ā Ā Ā Ā Ā Ā Ā Ā  AES 3 + SPF/DIFĀ Ā Ā Ā Ā Ā Ā Ā Ā Ā Ā Ā Ā Ā Ā Ā Ā Ā Ā Ā Ā Ā Ā Ā Ā Ā Ā Ā Ā  AES 3 + SPF/DIF

XLRĀ Ā Ā Ā Ā Ā Ā Ā Ā Ā Ā Ā Ā Ā Ā Ā Ā Ā Ā Ā Ā Ā Ā Ā Ā Ā Ā Ā Ā Ā Ā Ā Ā Ā Ā Ā Ā Ā Ā Ā Ā Ā Ā Ā Ā Ā Ā Ā Ā  XLRĀ Ā Ā Ā Ā Ā Ā Ā Ā Ā Ā Ā Ā Ā Ā Ā Ā Ā Ā Ā Ā Ā Ā Ā Ā Ā Ā Ā Ā Ā Ā Ā Ā Ā Ā Ā Ā Ā Ā Ā Ā Ā Ā Ā Ā Ā Ā Ā Ā Ā Ā  XLR

44.1 kHz, 48 kHz, 88.2 kHz,Ā Ā Ā Ā Ā Ā  44.1 kHz, 48 kHz, 88.2 kHz,Ā Ā Ā Ā Ā Ā Ā Ā Ā  44.1 kHz, 48 kHz, 88.2 kHz,

96 kHz, 176.4 kHz, 192 kHzĀ Ā Ā Ā Ā Ā  96 kHz, 176.4 kHz, 192 kHzĀ Ā Ā Ā Ā Ā Ā Ā Ā  96 kHz, 176.4 kHz, 192 kHz

24 BitĀ Ā Ā Ā Ā Ā Ā Ā Ā Ā Ā Ā Ā Ā Ā Ā Ā Ā Ā Ā Ā Ā Ā Ā Ā Ā Ā Ā Ā Ā Ā Ā Ā Ā Ā Ā Ā Ā Ā Ā Ā Ā Ā Ā Ā  24 BitĀ Ā Ā Ā Ā Ā Ā Ā Ā Ā Ā Ā Ā Ā Ā Ā Ā Ā Ā Ā Ā Ā Ā Ā Ā Ā Ā Ā Ā Ā Ā Ā Ā Ā Ā Ā Ā Ā Ā Ā Ā Ā Ā Ā Ā Ā Ā  24 Bit







@ Full Scale

+6dBu / max +15dBuĀ Ā Ā Ā Ā Ā Ā Ā Ā Ā Ā Ā Ā Ā Ā Ā Ā  -āˆž … +18dBu

+4dBu / max +15dBu

+5dBu / max +15dBu



18 kOhm typ.Ā Ā Ā Ā Ā Ā Ā Ā Ā Ā Ā Ā Ā Ā Ā Ā Ā Ā Ā Ā Ā Ā Ā Ā Ā Ā Ā Ā Ā Ā Ā  Mic typ 1.2 kOhm Live typ 10 kOhm



@ Full ScaleĀ Ā Ā Ā Ā Ā Ā Ā Ā Ā Ā Ā Ā Ā Ā Ā Ā Ā Ā Ā Ā Ā Ā Ā Ā Ā Ā Ā Ā Ā Ā Ā Ā Ā Ā  Not balanced

+6dBu / max +15dBuĀ Ā Ā Ā Ā Ā Ā Ā Ā Ā Ā Ā Ā Ā Ā Ā Ā  Adjustable Volume

+4dBu / max +15dBu

+5dBu / max +15dBu

40 Ohm typ.Ā Ā Ā Ā Ā Ā Ā Ā Ā Ā Ā Ā Ā Ā Ā Ā Ā Ā Ā Ā Ā Ā Ā Ā Ā Ā Ā Ā Ā Ā Ā Ā Ā Ā  < 16 Ohm,

Headphones with up to

600 Ohm can be used

Video

Additional information

Weight 1 kg
Dimensions 30 × 15 × 7 cm

Brand

Yellowtec
